Automating Water Source Management Data with Google Apps Script

One of the most exciting aspects of my work at FCXO is the opportunity to rapidly prototype solutions for unique challenges. Today, I encountered an interesting problem faced by an NGO managing water sources using KoboToolbox.

The Problem

The NGO collects survey data to monitor water sources affected or improved by an intervention. The key questions in the survey include:

• What is the type of intervention area?
• Which water sources were impacted?

Types of Intervention Areas

1. Catchment Area – Where rainfall collects and drains into a water body, such as a river or lake. Interventions here may include reforestation, soil conservation, or erosion control.
2. Outside Source-shed – Areas adjacent to watersheds that indirectly affect water quality.
3. Command Area – Downstream regions where water is distributed for irrigation or drinking.

The survey also collects geospatial data, allowing users to map the intervention areas by inputting coordinates and generating polygons.

The Existing Process

Once the data is collected, the current workflow involves:

1. Downloading the CSV from KoboToolbox.
2. Cleaning the data manually.
3. Loading the coordinates into QGIS to visualize and validate if the intervention areas align with the affected sources.

This was a tedious and repetitive process. The NGO asked if we could automate the workflow to streamline data updates and cleaning while maintaining the ability to visualize the data efficiently.

Automating the Workflow with Google Apps Script

Google’s Apps Script is a powerful tool that allows automation within the Google ecosystem. Given the structured nature of the cleanup process, I wrote a script that:

1. Pulls data from KoboToolbox using its API, which exports data in JSON format.
2. Cleans the data based on predefined transformations.
3. Writes the cleaned data directly into Google Sheets.

To keep this process efficient, I leveraged Apps Script Triggers to automate data fetching at a scheduled frequency (e.g., daily). This ensured that the latest survey data was always available and pre-processed without manual intervention.

Addressing the Visualization Challenge

With data processing automated, the next challenge was visualizing the intervention areas. Initially, I explored Looker Studio, as it provides great tools for visualization. However, it lacked native support for displaying polygon-based GeoJSON data on maps.

Exploring Alternatives

1. Custom Visualization in Looker Studio
   • Looker Studio allows custom visualizations using JavaScript.
   • I considered building one using Leaflet.js, but it required additional effort, and I wanted a quicker solution.
2. Deploying a Web App with Apps Script
   • Apps Script can also be used to create simple web apps.
   • I built a web app that:
     • Fetches data from Google Sheets.
     • Converts it into proper GeoJSON format.
     • Displays it on a map using Leaflet.js.

Enhancements and Final Touches

To improve usability, I added:

• Satellite view options for better clarity.
• Captions and proper zooming for easy navigation.
• Unique map links for each intervention area, making it easier to inspect specific locations.

The Final Outcome

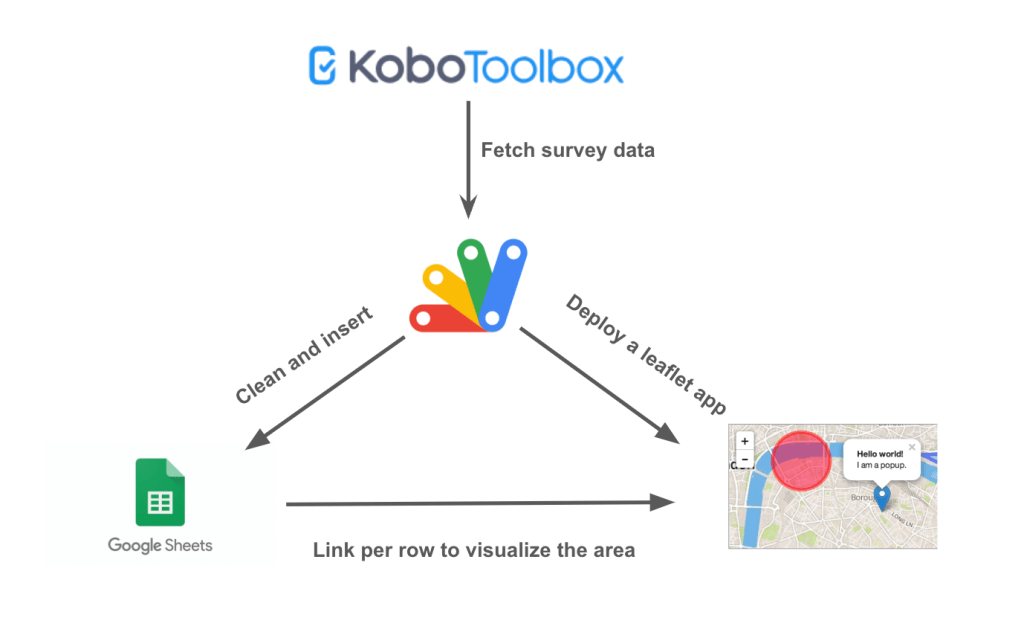

Now, with a single script execution:

1. Data is fetched from KoboToolbox, cleaned, and stored in Google Sheets.
2. A unique map link is generated for each intervention area.
3. Users can visualize and validate the interventions quickly, eliminating the need for manual CSV handling and QGIS processing.

Key Takeaways

This project highlights how simple automation with Google Apps Script can significantly reduce manual effort and streamline workflows. If you work with data processing and visualization, I highly recommend exploring Apps Script, Looker Studio, and Leaflet.js to build similar solutions!
